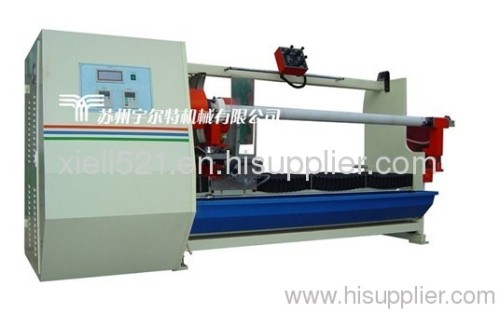

automatic tape cutting machine from China manufacturer

Price:	23000.0~100000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YET03-01

Production Capacity: 10 sets/month

Delivery Date: 30 working days

min.cutting width: 3mm

Max.cutting diameter: 400mm

blade speed: 360-1800rpm

Means of Transport: Ocean

Packing: wooden case

valid width: 1300mm/1600mm

automatic grade: full automatic

cutting speed: 35cuts/min

Inside diameter of paper core: 32-76.2mm

Suitable for the cutting of pvc,opp,pe,masking paper,double-side tape,karft paper.cloth tape and foam tape etc.

1.Application:

Suitable for the cutting of pvc,opp,pe,masking paper,double-side tape,karft paper.cloth tape and foam tape etc.

2.Feature:

(1)computer integrated control,LCD touch screen operation,and the parameters,funcations could be set from the scree directly.

(2)Silicon liquor cooling system is used for preventing the gluing of blade and keeping the blade working in good conditions.

(3)The round trip is driven by servomotor,matched with precision ball screw and wore slide rail,too smooth the round trip of the blade and position accuracy.

(4)Stepping motor could adjust the angle of the blade directly when the cut surface of the product is unevenness,to guarantee the quality of product.

3.Technical parameters:

Max.cutting diameter	400mm max.
Max.cutting speed	35cuts/min
Max. length of rolled-cutting	1600mm
Inside diameter of paper core	32-76.2mm
Cutting width	3-1600mm
Main drive motor	5HP
Blade drive motor	3HP*6P(servo motor)
Blade diameter	150-400mm
Blade speed	360-1800rpm
